The fuel level sensor is your vehicle’s fantastic yet frequently underestimated feature! Every day, it works tirelessly to keep you informed about your fuel level, ensuring you never run low unexpectedly. When your fuel dips, it sends a friendly reminder with the warning light urging, “Time to refuel, or you might stop in your tracks!” Curious about how this amazing device works? Want to explore its various types and essential components? Let’s dive in together and discover this crucial sensor’s incredible importance and functionality—your reliable partner on the road!
1. What is a Fuel Level Sensor?
A fuel level sensor is a device that monitors the amount of fuel in your car’s tank. Its working principle is simple and effective: it detects changes in the fuel level and converts them into signals. These signals are displayed on your dashboard or sent to your car’s onboard computer.
Where is the fuel level sensor located?
Typically, the fuel level sensor is installed on the fuel pump assembly or mounted on top of the fuel tank. Think of it as a “scout” stationed in the tank, constantly watching over your fuel.
2. Functions of a Fuel Level Sensor: Beyond Displaying Fuel Levels
A fuel level sensor’s primary role is to monitor the fuel amount and alert the driver to refuel in time. Beyond this, it can:
- Work with the onboard computer to optimize fuel consumption
The fuel level sensor, also called the Fuel Tank Sending Unit, sends real-time data to the onboard computer, helping calculate fuel usage and optimize fuel injection for better efficiency. - Support low fuel level warnings
When the fuel level is critically low, the sensor triggers the warning light, helping you avoid the embarrassment of being stranded with an empty tank. - Assist in diagnosing fuel system issues
Using the fuel level sensor data, technicians can quickly identify problems such as stuck floaters or damaged resistance plates.
3. Types of Fuel Level Sensors and How They Work
Despite their small size, fuel level sensors come with various advanced technologies. Based on their operating principles, they are categorized into three main types:

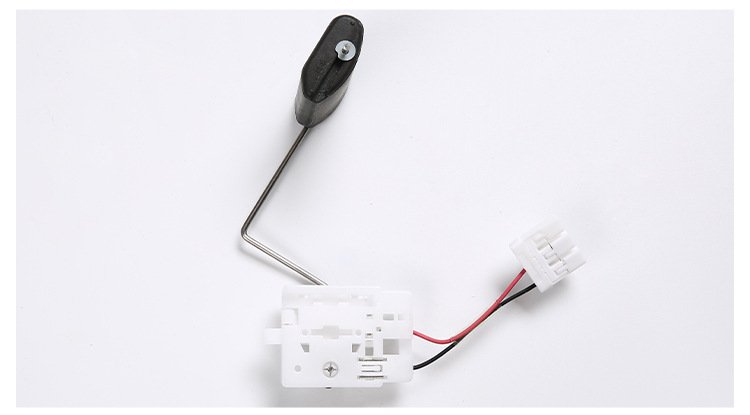

1. Sliding Resistor Fuel Level Sensor: Simple and Reliable
How it works:

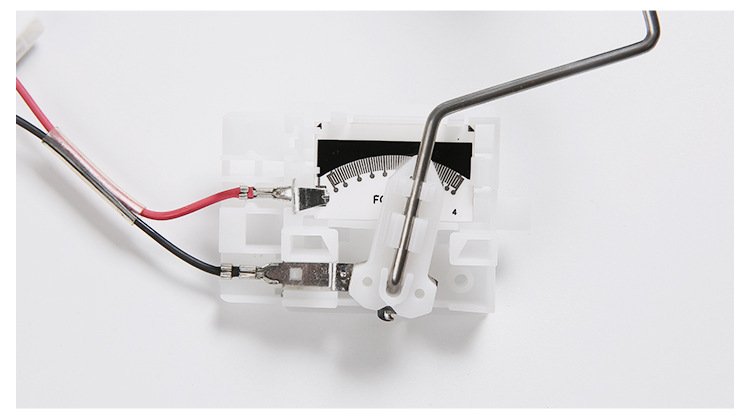

This is the most basic type of fuel level sensor, which operates using a sliding resistor and a float. As the fuel level changes, the float moves up and down, causing the sliding arm to travel across a resistor plate. This movement alters the resistance of the resistor plate. The change in resistance modifies the output voltage, which is then read by the onboard computer to determine the fuel level.
In Action:
- When the tank is full: The float rises, positioning the sliding arm at one end of the resistor plate. This results in maximum resistance and a higher voltage output.
- As fuel decreases, the float drops, moving the arm toward the other end of the resistor plate. This reduces both the resistance and the output voltage.
Pros: Low cost, simple structure, and easy to maintain.
Cons: The resistor plate is susceptible to wear and tear, which can shorten its lifespan. It is easy to maintain.
Cons: Susceptible to wear and tear of the resistor plate, which can shorten its lifespan.

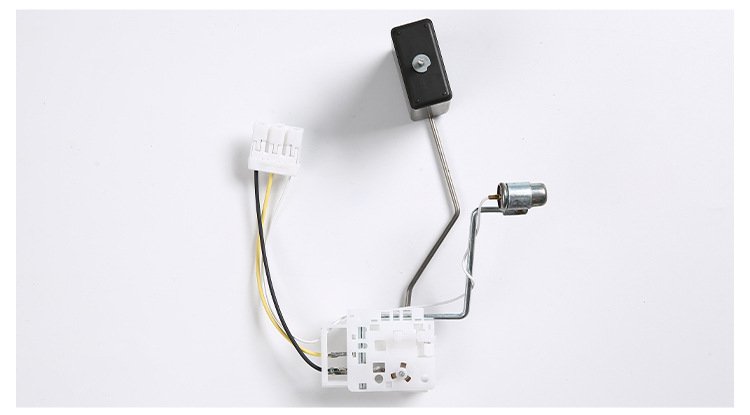

2. Thermistor Fuel Level Sensor: The “Temperature Whisperer”
How it works:
The thermistor fuel level sensor utilizes a temperature-sensitive resistor to gauge fuel levels. Thermistors alter their resistance based on temperature changes. When the thermistor is submerged in fuel, the liquid absorbs heat, preventing a significant rise in temperature and increasing resistance. Conversely, when the fuel levels drop, and the thermistor is exposed to air, heat dissipation slows, causing the temperature to rise and the resistance to decrease.
The mechanism for triggering the warning light:
- The sensor increases current output when resistance drops below a specific threshold, activating the low-fuel warning light.
Pros: High sensitivity and accurate measurements.
Cons: It can be affected by ambient temperature, which impacts accuracy.
3. Brushless Hall Effect Fuel Level Sensor: The High-Tech Choice
How it works:
This innovative sensor harnesses the Hall effect to detect magnetic field changes resulting from the float’s movement. As the float shifts, it alters the magnetic field, which the Hall element accurately registers to determine fuel levels. This design significantly minimizes wear and tear by eliminating mechanical contact, ensuring enhanced precision.
Applications:
Its brushless architecture makes it perfect for demanding environments, such as extreme temperatures and high pressures, positioning it as the ideal choice for today’s advanced vehicles.
Pros:
- Exceptional precision
- Extended lifespan
- No mechanical wear issues
Cons:
- Higher production costs
- Complexity in repairs
5. Components of a Fuel Level Sensor: Small but Mighty
The fuel level sensor may look compact, but its internal design is intricate and precise. Its key components include:
| Component | Function |
|---|---|

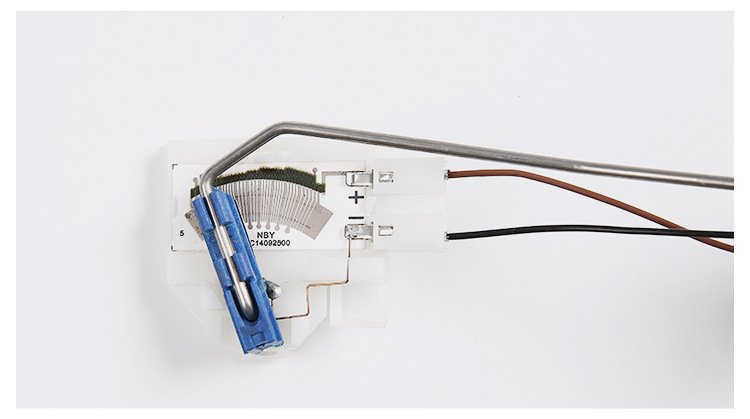

| Resistor Plate | Converts the sliding arm’s movement into varying resistance values. Fuel-resistant for stable operation. |
| Plastic Casing | Provides structural support and secures internal components. No corrosion protection. |
| Float and Float Rod | NBR float moves with fuel level changes, transmitting vertical movement as electrical signals via the rod. |
| Spring and Snap Clips | Provides flexibility and precision for the sliding arm’s movements. |

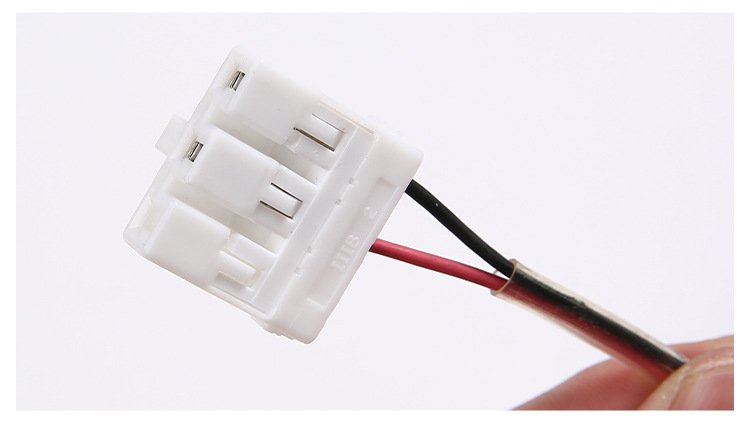

| Wiring Harness and Connectors | Transmits the sensor’s signals to the ECU. |
| Copper Components | Reduce electrical resistance, improving signal transmission |
6. How to Test if Your Fuel Level Sensor is Working?
If you suspect your fuel level sensor might be malfunctioning, follow these steps to test it:
Tools Needed: Multimeter/Voltmeter
- Disconnect the sensor circuit: Locate the sensor’s connector and unplug it.
- Measure resistance: Set the multimeter to resistance mode and test the sensor’s output terminals.
- Normal condition: Resistance should vary as the float’s position changes.
- Abnormal condition: The sensor is faulty if resistance is constant or infinite (open circuit).
- Check voltage output: Reconnect the power supply and use the voltmeter to measure if the sensor’s voltage output changes with the float’s movement.
7. Common Problems and Solutions
- Inaccurate fuel readings
- Cause: Worn-out resistor plate or distorted signal.
- Solution: Replace the sensor or clean the resistor plate.
- Fuel warning light triggers prematurely
- Cause: Thermistor interference from ambient temperature or circuit issues.
- Solution: Check the circuit or replace the sensor.
- No signal output
- Cause: Loose wiring or internal sensor circuit failure.
- Solution: Reconnect the wiring or replace the sensor.
8. Conclusion: The Fuel Level Sensor – Your Tank’s Expert
The fuel level sensor may operate quietly, but its importance cannot be overstated. Whether it’s the straightforward sliding resistor type, the innovative thermistor type, or the cutting-edge brushless Hall effect type, each plays a vital role in keeping you updated about your fuel levels. With this dependable “informant” by your side, you can confidently hit the road, fully aware that you won’t face an unexpected fuel shortage. So, the next time you stop to refuel, take a moment to acknowledge its invaluable contributions to your driving experience!
